TS12-27A-12T-N-12EY PRESS CONTROL

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

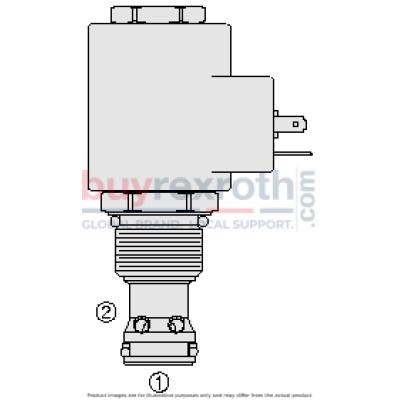

The Hydraforce 5123071 (5123071) is a pilot-operated, spool-type, proportional pressure relieving valve designed to provide precise pressure control in demanding applications. This valve allows for infinite adjustment across a specified range through variable electric input, making it highly adaptable for various hydraulic systems. The TS12-27X model operates by blocking flow from port 1 to port 2 until the pressure at port 1 surpasses the induced spring force, thus opening the pilot section. Without electrical current, the valve relieves at its maximum set pressure; however, applying current to the coil reduces the pressure needed to open the valve proportionally. This feature makes it ideal for applications requiring dynamic pressure adjustments. The valve comes with several adjustable pressure ranges and offers factory preset fixed pressure models for specific requirements. It is constructed with hardened parts to ensure long life and reliability in operation. Standard coil options include both 12 and 24 volts, catering to different system requirements. Additionally, it features an industry-common cavity and offers optional waterproof E-Coils that are rated up to IP69K, providing enhanced protection against environmental factors such as dust and water ingress.
