TS12-27C-12T-N-24DL PRESSURE CONT.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

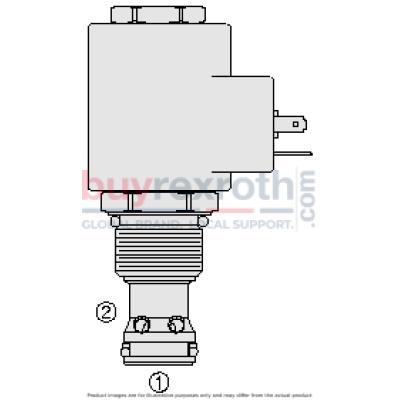

The Hydraforce 5122946 (5122946) is a pilot-operated, spool-type, proportional pressure relieving valve designed for precise control in demanding applications. This valve allows for infinite adjustment across a specified range using a variable electric input, with the regulated pressure being inversely proportional to the input electrical current. It functions as a pressure limiting device by blocking flow from port 1 to port 2 until sufficient pressure at port 1 overcomes the spring force to open the pilot section. In its default state with no current applied, the TS12-27X relieves at maximum set pressure; however, applying current to the coil decreases the required opening pressure proportionally. The valve offers several adjustable pressure ranges and factory preset fixed pressure models, ensuring flexibility and adaptability in various settings. Constructed with hardened parts, it promises durability and long service life. Standard coil options include both 12 and 24-volt configurations, and it fits an industry-common cavity for ease of integration. Additionally, optional waterproof E-Coils are available with an IP69K rating for enhanced environmental protection.
