TS12-27A-12T-N-12DL/W PRES CONTROL

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

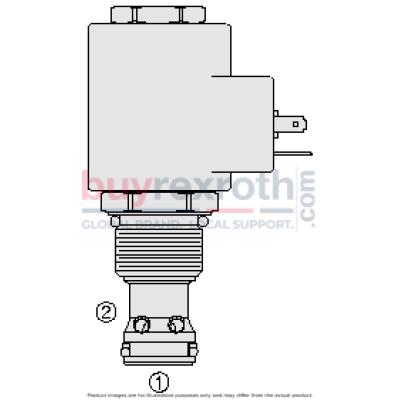

The Hydraforce 5122794 (5122794) is a pilot-operated, spool-type, proportional pressure relieving valve designed for precise pressure control in demanding applications. This valve allows for infinite adjustment across a specified range using a variable electric input, with the regulated pressure inversely proportional to the input electrical current. It functions as a pressure limiting device by blocking flow from port 1 to port 2 until sufficient pressure at port 1 overcomes the spring force and opens the pilot section. Without current applied, it relieves at maximum set pressure; applying current decreases the required opening pressure proportionally. The TS12-27X features several adjustable pressure ranges and factory preset fixed pressure models, ensuring versatility in application. Constructed with hardened parts for enhanced durability, it offers standard 12 and 24-volt coils and fits industry-common cavities. Optional waterproof E-Coils rated up to IP69K are available, providing additional protection in harsh environments.
