TS08-27A-0-V-0 PRESSURE CONTROL

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

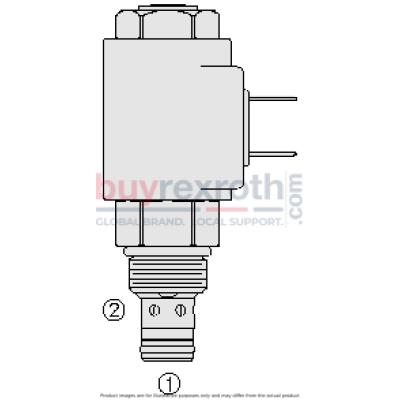

The Hydraforce 5121991 (5121991) is a pilot-operated spool type, proportional pressure relieving valve designed for precise pressure control in hydraulic systems. This model, known as the TS08-27F, regulates pressure inversely proportional to the input electrical current, making it highly adaptable for applications requiring variable pressure settings. The valve operates by blocking flow from port 1 to port 2 until the pressure at port 1 is sufficient to overcome the preset spring force. By applying current to the coil, users can decrease this spring force and thus reduce the valve setting, allowing for dynamic control of system pressure. The TS08-27F features several adjustable pressure settings and offers factory preset fixed pressure options for added convenience. Built with hardened parts, this valve ensures long-lasting performance even in demanding environments. It supports both 12 and 24-volt coils as standard options and fits industry-common cavities for easy integration into existing systems. Additionally, the optional waterproof E-coils are rated up to IP69K, providing superior protection against harsh environmental conditions. This combination of features makes the Hydraforce 5121991 ideal for applications requiring reliable and adjustable pressure relief in hydraulic circuits.
