PV70-33A-0-N-12DG CARTRIDGE
Manufacturer: Hydraforce
Material #: 5120025
Model : PV70-33A-0-N-12DG CARTRIDGE
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

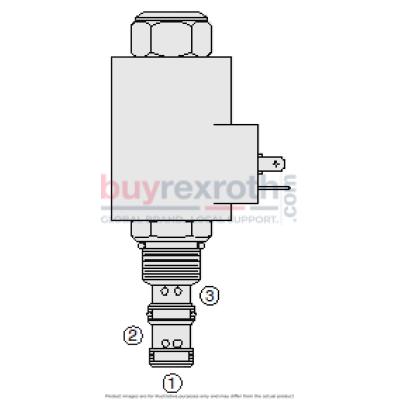

The Hydraforce 5120025 (5120025) is a solenoid-operated, spool-type, normally closed, proportional flow control valve. It is specifically engineered to work with a pressure compensator to function as a proportional flow regulator. This valve is known for its excellent linearity and hysteresis characteristics, which ensure precise control and smooth operation. The hardened spool and cage construction contribute to the valve's durability and long service life. It features efficient wet-armature construction and offers optional coil voltages and terminations, making it adaptable for various applications. The unitized, molded coil design ensures reliability, while the standard coil waterproofing enhances its suitability for challenging environments. Additionally, it includes a manual override option for added versatility in operation. This product is ideal for applications requiring precise flow regulation with dependable performance over extended periods.
$201.00 USD
Availability: Backordered
Ships from US Note: Sales tax, shipping, and applicable tariffs will be calculated at checkout.
Qty:
Delivered as early as January 6, 2027
| Ratings: | Pressure Ratings Pressure rating: 241 bar (3500 psi) Proof pressure: 345 bar (5000 psi) Burst pressure: 896 bar (13000 psi) Flow Ratings Flow rating: 0 to 45.4 lpm (0 to 14 gpm) Range A 0 to 37.8 lpm (0 to 10 gpm) Range b 0 to 18.9 lpm (0 to 5 gpm) Range c Maximum internal leakage: 197 ml/min (12 in³/min) Hysteresis flow: lpm (gpm) Maximum Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With urethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) Other Ratings Corrosion protection: 960 hr salt spray per ASTM b117 |
| Operating Parameters: | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 18/16/13 per ISO 4406 |
| Electrical Parameters: | Note:
With size 70 d-series and e-series coils Valve inductance: 240 mH E-coil 12 V 700 mH E-coil 24 V 200 mH D-coil 12 V 600 mH D-coil 24 V Threshold current: 300 mA Flow range A or b 12 V coil 150 mA Flow range A or b 24 V coil 360 mA Flow range c 12 V coil 180 mA Flow range c 24 V coil Maximum control current: 1500 mA Flow range A or b 12 V coil 750 mA Flow range A or b 24 V coil 1400 mA Flow range c 12 V coil 700 mA Flow range c 24 V coil Dither PWM frequency: 100 to 250 Hz |
| Performance: |  |
| Installation Specifications: | Cavity:
VC10-3 10-size-3-way Cavities Cartridge installation torque: 34 to 37 N-m (25 to 27 ft-lb) Maximum allowable torque: 75 N-m (55 ft-lb) Coil nut torque: 14 to 16 N-m (10 to 12 ft-lb) Cover cap torque: 7 to 9 N-m (5 to 7 ft-lb) Orientation restriction: None |
| Order Code: | POSITION CODE DESCRIPTION PV70-33DE-H-J-L D Max Regulated Flow D A 45.4 lpm (14.0 gpm) Max Regulated Flow D B 37.8 lpm (10.0 gpm) Max Regulated Flow D C 18.9 lpm (5.0 gpm) Max Regulated Flow E Manual Override E BLANK NONE E G Variable Position Override, Red Knurled Knob with Cover Cap E M Variable Position Override, Red Knurled Knob H Line Body H 0 No Body H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 3B Aluminum BSPP 3/8" (3) H 3BD Ductile Iron BSPP 3/8" (3) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DS 12 VDC, D-Coil, Dual Spade L 12ER 12 VDC, E-Coil, Deutsch L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires L 24DS 24 VDC, D-Coil, Dual Spade L 24ER 24 VDC, E-Coil, Deutsch |
