SF20-23-20TD-P-24AP SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

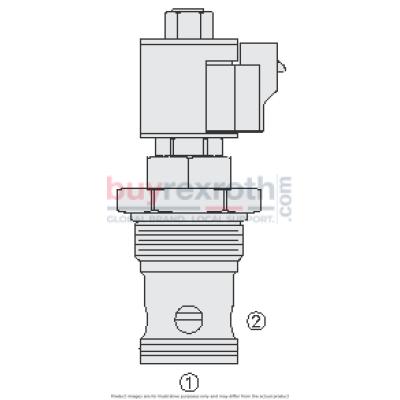

The Hydraforce 5074153P (5074153P) is a solenoid-operated, 2-way, normally open, poppet-type, screw-in hydraulic cartridge valve. It is specifically designed to function efficiently as a load holding or blocking valve in applications that demand minimal internal leakage at high pressure. In its default state when de-energized, the SF20-23 poppet lifts to allow flow from port 2 to port 1 and also permits flow from port 1 to port 2. Upon energization, the cartridge acts as a check valve by blocking flow from port 2 to port 1 while still allowing reverse flow. This valve features a continuous-duty rated coil and has a hardened seat for enhanced longevity and reduced leakage. It offers optional coil voltages and terminations, with cartridges being voltage interchangeable. The unitized, molded coil design provides robustness, while optional waterproof E-Coils are rated up to IP69K for superior protection against environmental factors. Additionally, the valve boasts corrosion-resistant plating and fits into an industry-common cavity for easy integration into various systems.
