SF20-23-0-N-24EL SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

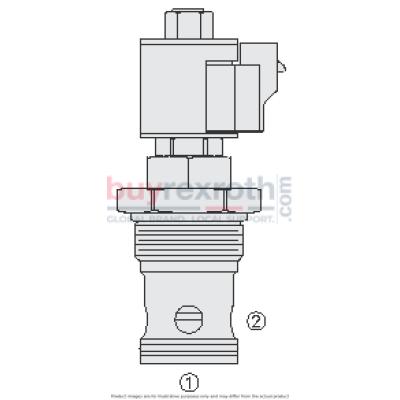

The Hydraforce 5074036N (5074036N) is a solenoid-operated, 2-way, normally open, poppet-type screw-in hydraulic cartridge valve. It is specifically engineered to serve as a load holding or blocking valve in applications where low internal leakage at high pressure is essential. In its default state, when de-energized, the SF20-23 model allows the poppet to lift and open from port 2 to port 1, permitting flow in both directions. Upon energization, the valve functions as a check valve by blocking flow from port 2 to port 1 while allowing reverse flow from port 1 to port 2. This cartridge valve features a continuous-duty rated coil and a hardened seat that ensures long life with minimal leakage. The unit offers optional coil voltages and terminations for versatile application needs and features voltage-interchangeable cartridges. Its unitized, molded coil design enhances durability, and it includes optional waterproof E-Coils that are rated up to IP69K for superior protection against environmental elements. Additionally, the corrosion-resistant plating enhances its longevity in harsh conditions. Designed with an industry common cavity, this product provides ease of integration into various hydraulic systems.
