SF20-22-20T-P-12EL SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

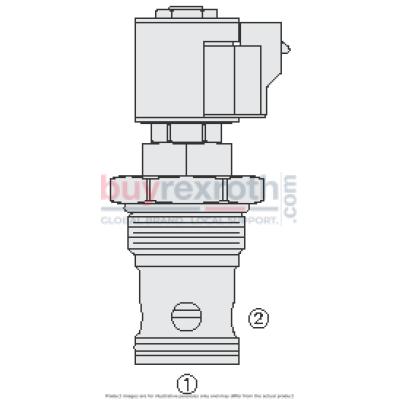

The Hydraforce 5073113 (5073113) is a solenoid-operated, 2-way, normally closed, poppet-type, screw-in hydraulic cartridge valve. It is specifically designed to function as a load holding or blocking valve in applications that demand low internal leakage at high pressure. In its de-energized state, the SF20-22 operates as a check valve, permitting flow from port 1 to port 2 while preventing reverse flow. When energized, the poppet lifts to open the flow path from port 2 to port 1, also allowing flow from port 1 to port 2. This valve features a continuous-duty rated coil and a hardened seat that ensures long life and minimal leakage. It offers flexibility with optional coil voltages and terminations, and its cartridges are voltage interchangeable for added versatility. The unitized, molded coil design enhances durability, with optional waterproof E-Coils available that are rated up to IP69K for superior protection against environmental elements. Additionally, it boasts corrosion-resistant plating and fits into industry-common cavities for easy integration into existing systems.
