SF20-22M-20TD-N-12DG SOLENOID VALV

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

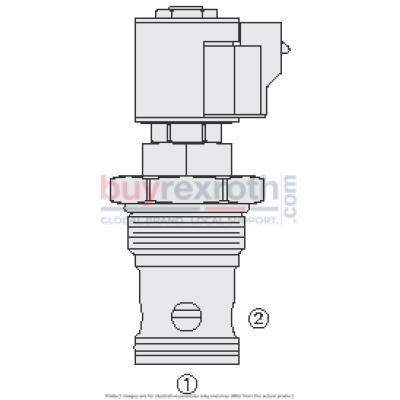

The Hydraforce 5073090 (5073090) is a solenoid-operated, 2-way, normally closed, poppet-type hydraulic cartridge valve. This component is engineered to function as a load holding or blocking valve in high-pressure applications where low internal leakage is crucial. In its de-energized state, the SF20-22 model operates as a check valve, enabling fluid flow from port 1 to port 2 while preventing reverse flow. When energized, the poppet lifts to open the flow path from port 2 to port 1 and also permits flow from port 1 to port 2. The valve features a continuous-duty rated coil for reliable performance and a hardened seat that ensures extended life with minimal leakage. It offers versatility with optional coil voltages and terminations and benefits from voltage-interchangeable cartridges. The unitized, molded coil design enhances durability, while optional waterproof E-Coils are available with an IP69K rating for robust environmental protection. Additionally, the valve's corrosion-resistant plating adds to its longevity in demanding conditions. Designed with an industry-common cavity, this hydraulic component integrates seamlessly into existing systems requiring dependable load holding or blocking capabilities at high pressures.
