SF20-22-20TD-P-24EG SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

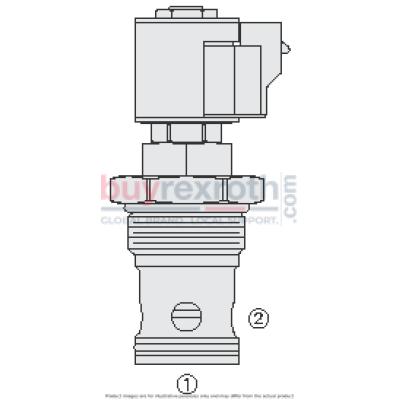

The Hydraforce 5073086 (5073086) is a solenoid-operated, 2-way, normally closed, poppet-type screw-in hydraulic cartridge valve. It is specifically designed to function as a load holding or blocking valve in applications that require low internal leakage at high pressure. When de-energized, the SF20-22 model acts as a check valve, allowing flow to pass from port 1 to port 2 while blocking flow in the reverse direction. Upon energization, the poppet lifts to open the flow path from port 2 to port 1 and permits flow from port 1 to port 2 as well. Key features of this product include a continuous-duty rated coil and a hardened seat for extended life and minimized leakage. The valve offers optional coil voltages and terminations and has cartridges that are voltage interchangeable. Its unitized, molded coil design includes optional waterproof E-Coils rated up to IP69K for enhanced durability in harsh environments. Additionally, it is equipped with corrosion-resistant plating and fits an industry-common cavity for easy integration into various systems.
