SF20-22-20T-P-115AP SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

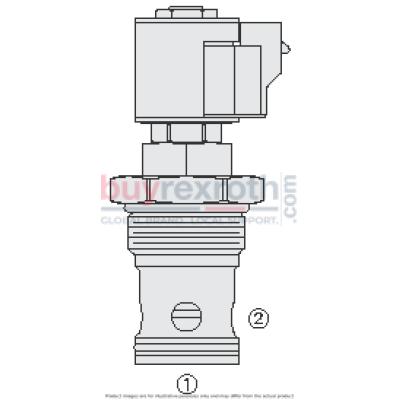

The Hydraforce 5073068 (5073068) is a solenoid-operated, 2-way, normally closed, poppet-type hydraulic cartridge valve designed to function as a load-holding or blocking valve in applications that demand low internal leakage at high pressure. When de-energized, the SF20-22 model acts as a check valve, permitting flow from port 1 to port 2 while preventing reverse flow. Upon energization, the poppet lifts, enabling the flow path from port 2 to port 1 and allowing bidirectional flow between ports 1 and 2. This valve features a continuous-duty rated coil and a hardened seat for extended life and minimal leakage. It offers versatility with optional coil voltages and terminations, and its cartridges are interchangeable by voltage. The unitized, molded coil design enhances durability, while optional waterproof E-Coils provide protection up to IP69K against environmental elements. Additionally, the corrosion-resistant plating ensures longevity in harsh conditions. The valve\u2019s industry-common cavity design simplifies integration into existing systems, making it suitable for various hydraulic applications where reliable load holding or blocking is essential.
