SF20-22M-0-N-12ER SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

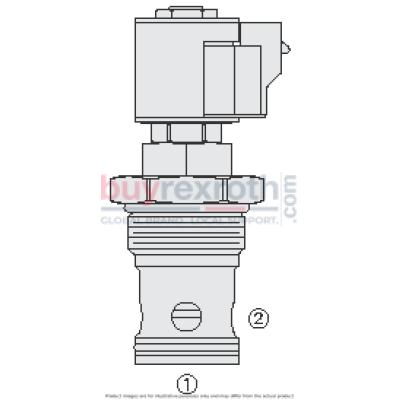

The Hydraforce 5073042 (5073042) is a solenoid-operated, 2-way, normally closed, poppet-type hydraulic cartridge valve. This valve is engineered to serve as a load holding or blocking valve in scenarios demanding minimal internal leakage under high pressure conditions. In its de-energized state, the SF20-22 functions as a check valve, facilitating flow from port 1 to port 2 while obstructing reverse flow. Upon energization, the poppet lifts to enable flow from port 2 to port 1, with bidirectional flow allowed between ports when energized. Key features include a continuous-duty rated coil and a hardened seat that ensures longevity and low leakage. The unit offers versatility with optional coil voltages and terminations, and its cartridges are voltage interchangeable for flexible application use. The design incorporates a unitized molded coil and offers optional waterproof E-Coils with an IP69K rating for enhanced durability under harsh conditions. Additionally, the valve boasts corrosion-resistant plating and fits into an industry-standard cavity, ensuring compatibility with various hydraulic systems.
