SF20-22J-0-N-00 SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

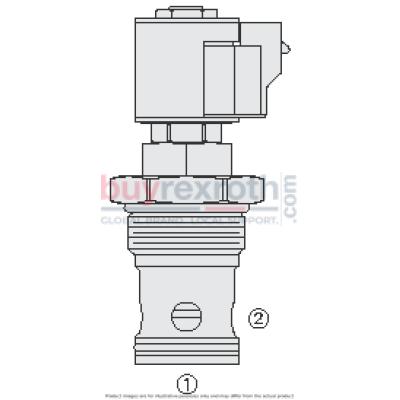

The Hydraforce 5073003 (5073003) is a solenoid-operated, 2-way, normally closed, poppet-type hydraulic cartridge valve. This screw-in valve is specifically engineered to function as a load-holding or blocking valve in applications that demand low internal leakage at high pressure. In its de-energized state, the SF20-22 model operates as a check valve, permitting flow from port 1 to port 2 while obstructing flow in the opposite direction. When energized, the poppet mechanism lifts to open the flow path from port 2 to port 1 and also allows flow from port 1 to port 2. The valve features a continuous-duty rated coil and a hardened seat designed for durability and minimal leakage. It offers optional coil voltages and terminations and is designed with cartridges that are voltage interchangeable. The unitized, molded coil design enhances reliability, while optional waterproof E-Coils provide protection up to IP69K standards. Additionally, the valve boasts corrosion-resistant plating and fits an industry-common cavity for versatile application.
