SP16-20J-16T-N-12ER SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

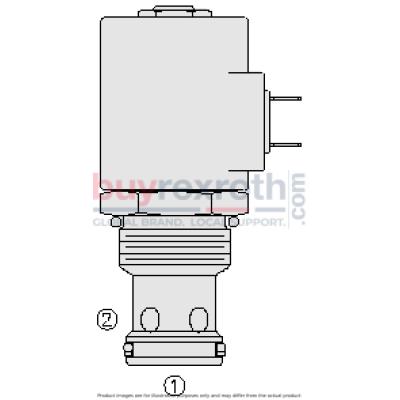

The Hydraforce 5062147 (5062147) is a solenoid-operated, 2-port, normally closed, poppet-type, proportional, screw-in hydraulic cartridge valve. This valve is specifically designed for low leakage blocking and load-holding applications. In its de-energized state, the SP16-20 functions as a check valve, permitting flow from port 1 to port 2 while blocking flow in the reverse direction from port 2 to port 1. When energized, the poppet lifts to open the flow path from port 2 to port 1; however, flow from port 1 to port 2 becomes severely restricted in this mode. Notable features of this valve include a continuous-duty rated coil and efficient wet-armature construction that enhances durability and performance. It also offers manual override options and optional waterproof E-Coils that are rated up to IP69K for superior protection against dust and water ingress. The valve is compatible with industry common cavities, ensuring versatility and ease of integration into various hydraulic systems.
