SP16-20-0-P-24ER SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

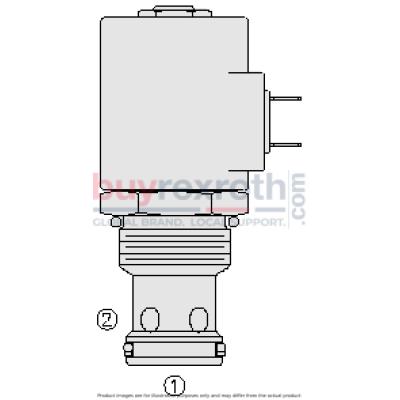

The Hydraforce 5062010P (5062010P) is a solenoid-operated, 2-port, normally closed, poppet-type, proportional screw-in hydraulic cartridge valve. This valve is specifically engineered for low leakage blocking and load-holding applications. When de-energized, the SP16-20 functions as a check valve, permitting flow from port 1 to port 2 while preventing flow in the reverse direction from port 2 to port 1. Upon energization, the valve's poppet lifts to open the flow path from port 2 to port 1; however, in this mode, flow from port 1 to port 2 remains significantly restricted. Key features of this product include a continuous-duty rated coil and efficient wet-armature construction, which ensures reliable performance in demanding environments. The valve also offers manual override options for additional control flexibility and optional waterproof E-Coils that are rated up to IP69K for enhanced protection against water ingress. Designed with an industry-common cavity, this hydraulic cartridge valve can be easily integrated into various hydraulic systems where precise control and reliability are paramount.
