SP16-20M-0-V-00 SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

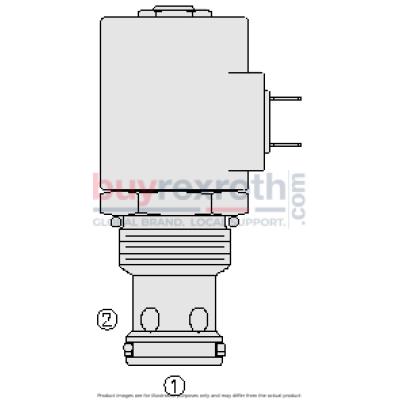

The Hydraforce 5062002V (5062002V) is a solenoid-operated, 2-port, normally closed, poppet-type, proportional, screw-in hydraulic cartridge valve. It is specifically designed for low leakage blocking and load-holding applications. In its de-energized state, the SP16-20 functions as a check valve that permits flow from port 1 to port 2 while blocking flow in the opposite direction. Upon energization, the poppet lifts to open the flow path from port 2 to port 1; however, in this state, flow from port 1 to port 2 remains significantly restricted. This valve features a continuous-duty rated coil and efficient wet-armature construction for enhanced performance and longevity. Users have the option to select manual override features and waterproof E-Coils that are rated up to IP69K for superior protection against dust and water ingress. The valve is compatible with an industry-standard cavity, making it versatile for various hydraulic systems requiring precise control of fluid flow.
