SP16-20-0-N-00 SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

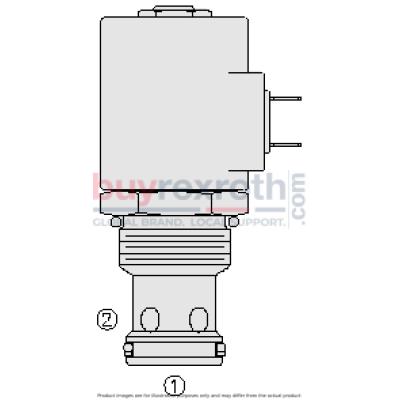

The Hydraforce 5062000 (5062000) is a solenoid-operated, 2-port, normally closed, poppet-type, proportional screw-in hydraulic cartridge valve. This valve is specifically designed for low leakage blocking and load-holding applications. In its de-energized state, the SP16-20 functions as a check valve that permits flow from port 1 to port 2 while preventing flow from port 2 to port 1. When energized, the poppet lifts to open the flow path from port 2 to port 1; however, in this mode, the flow from port 1 to port 2 becomes severely restricted. The valve features a continuous-duty rated coil and an efficient wet-armature construction, ensuring reliable performance under demanding conditions. It also offers manual override options and optional waterproof E-Coils that are rated up to IP69K for enhanced durability in harsh environments. Additionally, the product is designed with an industry-common cavity for easy integration into existing systems.
