SV16-21-16TD-N-12DG SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

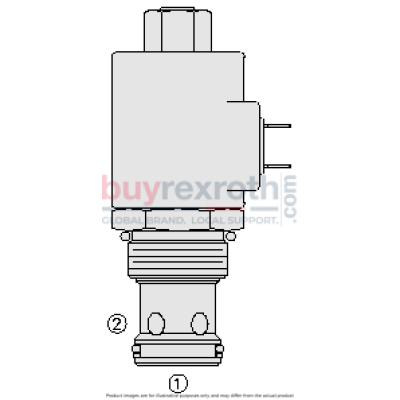

The Hydraforce 5061985 (5061985) is a solenoid-operated, 2-way, normally open, poppet-type, screw-in hydraulic cartridge valve. It is specifically designed to function as a load-holding or blocking valve in applications that require low internal leakage. In its de-energized state, the SV16-21 poppet lifts to open the flow path from port 2 to port 1 while restricting flow from port 1 to port 2. When energized, the valve closes the port 2 to port 1 flow path and acts as a check valve, allowing flow from port 1 to port 2 upon overcoming the solenoid force of 50 to 100 psi (3.4 to 6.9 bar). The valve features a continuous-duty rated coil and a hardened seat for enhanced durability and minimal leakage. It offers optional coil voltages and terminations and utilizes an efficient wet-armature construction. The cartridges are voltage interchangeable with a unitized, molded coil design that includes a manual override option. Additionally, it offers optional waterproof E-Coils with an IP69K rating for high resistance against dust and water ingress. The design fits into an industry-common cavity making it versatile for various applications requiring reliable hydraulic control functions.
