SV16-21-16T-N-12DL/W SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

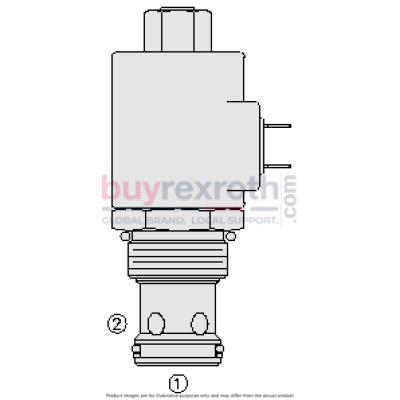

The Hydraforce SV16-21-16T-N-12DL/W (5061936) is a solenoid-operated, 2-way, normally open, poppet-type hydraulic cartridge valve. This valve is engineered to serve as a load-holding or blocking valve in applications demanding minimal internal leakage. In its de-energized state, the SV16-21 allows flow from port 2 to port 1 while restricting flow from port 1 to port 2. When energized, it closes the flow path from port 2 to port 1 and functions as a check valve permitting flow from port 1 to port 2 after overcoming a solenoid force of 50 to 100 psi (3.4 to 6.9 bar). The valve features a continuous-duty rated coil and a hardened seat that ensures durability and low leakage. It offers optional coil voltages and terminations with an efficient wet-armature construction and interchangeable voltage cartridges. The unitized, molded coil design includes an optional manual override and waterproof E-Coils rated up to IP69K for enhanced protection. The SV16-21 boasts pressure ratings of up to 207 bar (3000 psi) with static pressure capability up to 250 bar (3650 psi) based on one million cycles. Its proof pressure is rated at 345 bar (5000 psi), with burst pressure reaching up to 965 bar (14000 psi). The maximum internal leakage is limited to three drops per minute at the maximum pressure rating of 207 bar (3000 psi). It operates efficiently across a fluid temperature range of -40\u00b0C (-40\u00b0F) to +100\u00b0C (+212\u00b0F) with buna N seals, or -26\u00b0C (-15\u00b0F) to +204\u00b0C (+400\u00b0F) with viton seals. Compatible with mineral-based or synthetic hydraulic fluids featuring lubricating properties, it supports fluid viscosities ranging from 7.4 cSt to 420 cSt and maintains optimal performance under ISO contamination levels of up to 20/18/14 per ISO4406 standards. Installation specifications include compatibility with VC16-2 cavities and require specific torque settings for both cartridge installation and coil nut adjustments.
