SV16-21-16T-N-24DG SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

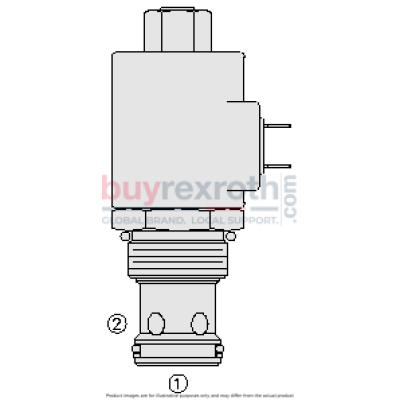

The Hydraforce 5061933 (5061933) is a solenoid-operated, 2-way, normally open, poppet-type screw-in hydraulic cartridge valve. This versatile component is specifically engineered to function as a load-holding or blocking valve in applications that demand low internal leakage. In its de-energized state, the SV16-21 poppet lifts to facilitate flow from port 2 to port 1, while significantly restricting flow from port 1 to port 2. When energized, the valve closes the port 2 to port 1 pathway, acting as a check valve that permits flow from port 1 to port 2 once the solenoid force is overcome (requiring between 50 and 100 psi or 3.4 to 6.9 bar). The valve boasts several advanced features including a continuous-duty rated coil and a hardened seat for enhanced durability and minimal leakage. It offers optional coil voltages and terminations, an efficient wet-armature construction, and cartridges that are voltage interchangeable. Additionally, it provides a manual override option and waterproof E-Coils rated up to IP69K for demanding environments. Designed with an industry-common cavity, this unitized molded coil design ensures adaptability across various systems.
