SV16-21-12T-N-12DS SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

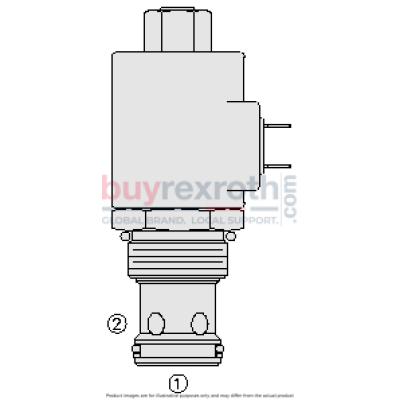

The Hydraforce 5061824 (5061824) is a solenoid-operated, 2-way, normally open, poppet-type screw-in hydraulic cartridge valve. It is engineered to serve as a load-holding or blocking valve in applications that demand low internal leakage. When de-energized, the SV16-21 model allows the poppet to lift, enabling a flow path from port 2 to port 1 while severely restricting flow from port 1 to port 2. Conversely, when energized, the flow path from port 2 to port 1 is closed, and the valve functions as a check valve permitting flow from port 1 to port 2 after overcoming solenoid force within the range of 50 to 100 psi (3.4 to 6.9 bar). The valve features a continuous-duty rated coil and a hardened seat for enhanced longevity and minimal leakage. It offers versatility with optional coil voltages and terminations and benefits from an efficient wet-armature construction. The cartridges are designed for voltage interchangeability, and the unitized molded coil design includes a manual override option. For demanding environments, optional waterproof E-Coils are available with ratings up to IP69K. The valve fits into an industry-common cavity, making it adaptable for various hydraulic systems requiring reliable load-holding capabilities.
