SV16-20M-16T-N-115AG SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

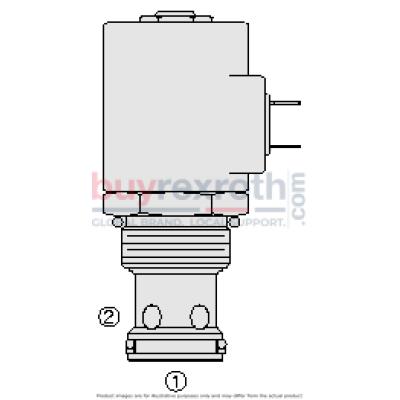

The Hydraforce 5060960 (5060960) is a solenoid-operated, 2-port, normally closed, poppet-type hydraulic cartridge valve. It is engineered to serve as a load-holding or blocking valve in applications that demand low internal leakage. When de-energized, this valve functions as a check valve, permitting flow from port 1 to port 2 while blocking flow in the opposite direction. Upon energization, the poppet lifts to enable flow from port 2 to port 1, with significant restriction on flow from port 1 to port 2. Key features include a continuous-duty rated coil and a hardened seat for enhanced longevity and reduced leakage. The valve offers optional coil voltages and terminations and incorporates an efficient wet-armature construction. Its cartridges are voltage interchangeable, providing flexibility in various applications. Additionally, it features a unitized, molded coil design with an available manual override option. For harsh environments, optional waterproof E-Coils are available with ratings up to IP69K. The valve fits into an industry-common cavity, ensuring compatibility and ease of integration into existing systems.
