SV16-20-16T-N-24DR SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

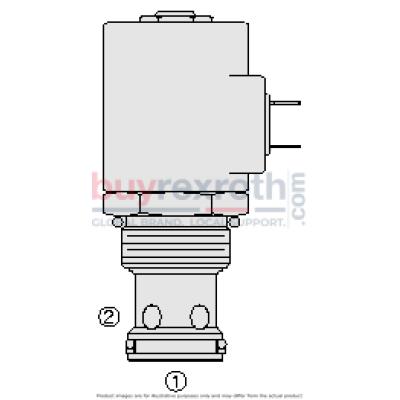

The Hydraforce 5060933 (5060933) is a solenoid-operated, 2-port, normally closed, poppet-type hydraulic cartridge valve specifically engineered for load-holding or blocking applications that demand low internal leakage. In its de-energized state, the SV16-20X functions as a check valve, permitting flow from port 1 to port 2 while preventing reverse flow. Upon energization, the poppet lifts to allow flow from port 2 to port 1, with flow from port 1 to port 2 becoming significantly restricted. This component features a continuous-duty rated coil and a hardened seat for enhanced durability and minimal leakage. It offers optional coil voltages and terminations and utilizes an efficient wet-armature construction. The cartridges are designed for voltage interchangeability and feature a unitized, molded coil design. Additionally, it includes a manual override option and offers optional waterproof E-Coils rated up to IP69K for increased environmental protection. The valve fits into an industry-common cavity, making it versatile for various hydraulic systems requiring reliable load-holding capabilities.
