SV16-20-16T-N-12DL/W SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

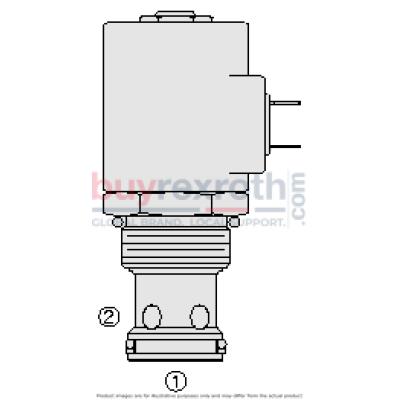

The Hydraforce 5060915 (5060915) is a solenoid-operated, 2-port, normally closed, poppet-type screw-in hydraulic cartridge valve. It is designed to function effectively as a load-holding or blocking valve in applications that demand low internal leakage. In its de-energized state, the SV16-20X model operates as a check valve, permitting flow from port 1 to port 2 while preventing reverse flow. When energized, the poppet mechanism lifts to open the flow path from port 2 to port 1, although flow from port 1 to port 2 becomes significantly restricted in this mode. Notable features include a continuous-duty rated coil and a hardened seat for enhanced longevity and minimal leakage. The valve offers optional coil voltages and terminations for versatile application needs and employs efficient wet-armature construction. The cartridges are voltage interchangeable, adding flexibility in use. Additionally, the unitized molded coil design supports durability and reliability. A manual override option is available for added control convenience. For environments requiring high waterproof standards, optional E-Coils are available with ratings up to IP69K. The valve fits into an industry-common cavity, ensuring compatibility with various systems and setups.
