SV16-22-16T-V-12DL SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

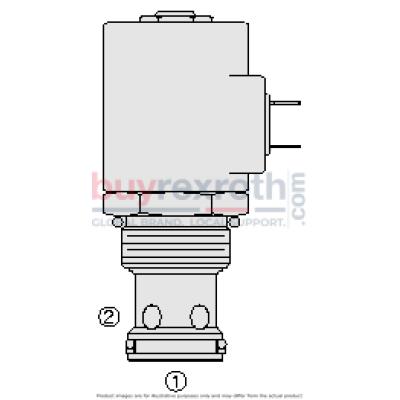

The Hydraforce 5060913V (5060913V) is a solenoid-operated, 2-port, normally closed, poppet-type, screw-in hydraulic cartridge valve. It is engineered to function as a load-holding or blocking valve in applications where low internal leakage is crucial. When de-energized, the SV16-22 operates as a check valve, permitting flow from port 1 to port 2 while blocking flow in the reverse direction. Upon energization, the poppet lifts to open the flow path from port 2 to port 1 and allows bidirectional flow between ports. This valve features a continuous-duty rated coil and a hardened seat for enhanced longevity and minimized leakage. It offers optional coil voltages and terminations and employs an efficient wet-armature construction. The cartridge design allows voltage interchangeability and includes a unitized, molded coil design with an optional manual override feature. Additionally, it offers waterproof E-Coils rated up to IP69K for demanding environments and fits an industry-common cavity for versatile applications.
