SV16-22-16T-N-00 SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

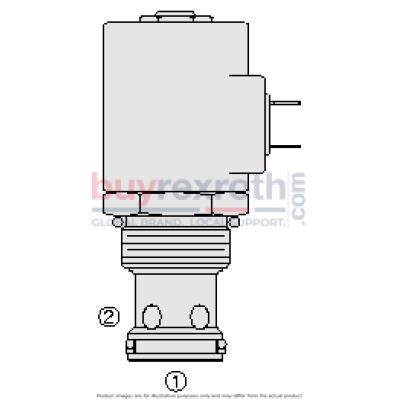

The Hydraforce 5060904 (5060904) is a solenoid-operated, 2-port, normally closed, poppet-type screw-in hydraulic cartridge valve. It is expertly designed to function as a load-holding or blocking valve in applications that demand low internal leakage. When de-energized, the SV16-22 model acts as a check valve, permitting flow from port 1 to port 2 while blocking flow in the reverse direction from port 2 to port 1. Upon energization, the poppet lifts to open the flow path from port 2 to port 1, and simultaneously allows flow from port 1 to port 2. This versatile valve features a continuous-duty rated coil and a hardened seat for enhanced durability and minimized leakage. It offers optional coil voltages and terminations for varied application needs and utilizes an efficient wet-armature construction. The cartridges are voltage interchangeable, further adding to its adaptability in different settings. The unitized, molded coil design includes a manual override option for increased control flexibility. Additionally, optional waterproof E-Coils are available with ratings up to IP69K for robust performance in harsh environments. Designed with an industry-common cavity, this hydraulic cartridge valve integrates seamlessly into existing systems requiring reliable load-holding capabilities with low internal leakage.
