SV16-20-8B-N-12DG SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

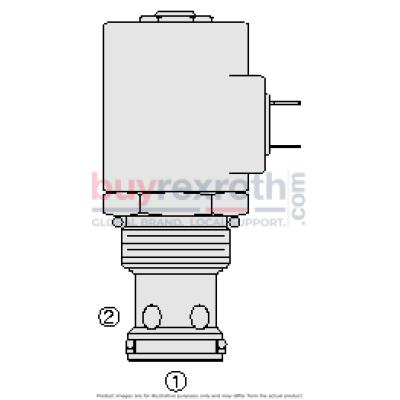

The Hydraforce 5060794 (5060794) is a solenoid-operated, 2-port, normally closed, poppet-type, screw-in hydraulic cartridge valve. This versatile component is specifically designed to function as a load-holding or blocking valve in applications that demand low internal leakage. When de-energized, the SV16-20X operates as a check valve, allowing fluid to flow from port 1 to port 2 while preventing reverse flow. Upon energization, the poppet lifts to open the pathway from port 2 to port 1; however, this configuration significantly restricts flow from port 1 to port 2. Key features include a continuous-duty rated coil and a hardened seat for extended life and minimal leakage. The valve offers optional coil voltages and terminations and boasts an efficient wet-armature construction. Cartridges are interchangeable in terms of voltage, enhancing flexibility across different systems. The unitized, molded coil design includes a manual override option for added control. Additionally, optional waterproof E-Coils are available with ratings up to IP69K for demanding environments. The cartridge fits into an industry-common cavity, simplifying integration into existing systems or designs.
