SV16-20-0-V-115AG W/ 7004406 NUT

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

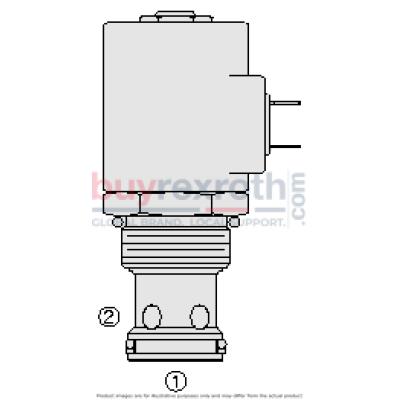

The Hydraforce 5060072 (5060072) is a solenoid-operated, 2-port, normally closed, poppet-type, screw-in hydraulic cartridge valve. This valve is specifically designed to function as a load-holding or blocking valve in various applications where low internal leakage is crucial. In its default state when de-energized, the SVX model acts as a check valve by allowing flow from port 1 to port 2 while effectively blocking flow in the reverse direction. Upon energization, the poppet lifts to open up the flow path from port 1 to port 2; however, in this mode, the flow from port 1 to port 2 becomes severely restricted. The Hydraforce SVX model boasts several key features enhancing its functionality and durability. It includes a continuous-duty rated coil and a hardened seat that ensures long life and minimal leakage. The efficient wet-armature construction aids in reliable operation under various conditions. For further adaptability, it offers optional coil voltages and terminations along with unitized, molded coil design which contributes to its robustness. Additional options such as manual override and waterproof E-Coils rated up to IP69K are available for environments requiring stringent ingress protection. Furthermore, this valve fits an industry-common cavity which simplifies installation processes across different systems using standard configurations.
