SV16-22J-0-N-24DG W/ 7004406 NUT

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

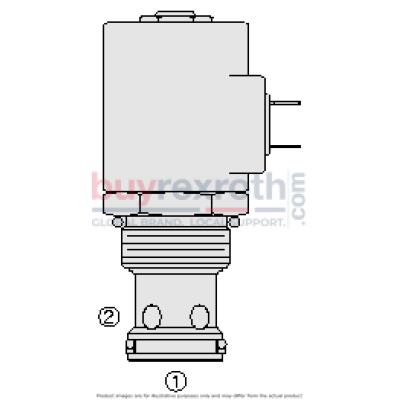

The Hydraforce 5060069 (5060069) is a solenoid-operated, 2-port, normally closed, poppet-type, screw-in hydraulic cartridge valve. It is meticulously designed to serve as a load-holding or blocking valve in systems where low internal leakage is crucial. The valve operates uniquely: when de-energized, it functions as a check valve allowing hydraulic fluid to flow from port 1 to port 2 while blocking the reverse flow from port 2 to port 1. Conversely, when the valve is energized, the poppet lifts to permit flow from port 1 to port 2 and also allows reverse flow from port 2 to port 1. Key features of this model include a continuous-duty rated coil and a hardened seat that ensures extended life and minimal leakage. The valve's efficient wet-armature construction enhances its performance while its unitized, molded coil design contributes to its robustness. Moreover, it offers flexibility with optional coil voltages and terminations which make it adaptable for various applications. The manual override option provides additional operational control. For environments requiring enhanced protection against moisture, optional waterproof E-Coils are available which are rated up to IP69K, ensuring performance in demanding conditions. Lastly, its industry-common cavity design facilitates easy installation and compatibility with standard configurations in hydraulic systems.
