SV16-20J-0-N-00 CARTRIDGE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

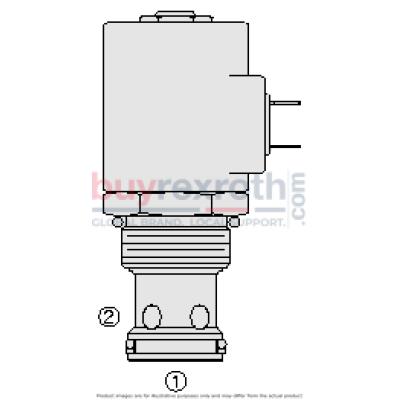

The Hydraforce SV16-20J-0-N-00 (5060013) is a solenoid-operated, 2-port, normally closed, poppet-type screw-in hydraulic cartridge valve. It is engineered to function as a load-holding or blocking valve in systems requiring minimal internal leakage. When de-energized, the SV16-20J-0-N-00 acts as a check valve, allowing hydraulic flow from one port to another while preventing reverse flow. Upon energization, the poppet lifts to facilitate flow between ports, though flow in this state is substantially restricted. Key features of the SV16-20J-0-N-00 include a continuous-duty rated coil and a hardened seat which ensures longevity and maintains low leakage. It offers optional coil voltages and terminations for versatility in different applications. The efficient wet-armature construction along with interchangeable voltage cartridges enhances its adaptability across various systems. This unit also includes a unitized, molded coil design and provides options for manual override and waterproof E-Coils that are rated up to IP69K for enhanced operational resilience. The valve is designed with industry-standard cavity dimensions for ease of integration into existing hydraulic systems without the need for extensive modifications. This makes it an ideal choice for applications requiring reliable performance under conditions where internal leakage needs to be minimized and robust valve performance is critical.
