SV12-21K-0-N-12EL SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

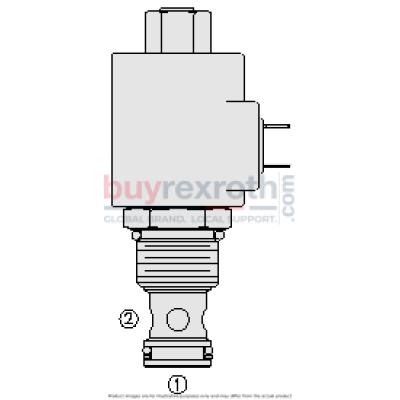

The Hydraforce 5049072 (5049072) is a solenoid-operated, 3-way, normally open, poppet-type, screw-in hydraulic cartridge valve. This valve is specifically designed to act as a load holding or blocking valve in systems where minimal internal leakage is crucial. In its default state when de-energized, the SV model allows fluid flow from port 1 to port 2, while restricting flow from port 2 to port 1. Upon energization, the poppet of the valve closes against its seat effectively blocking flow from port 1 to port 2 and acts as a check valve allowing flow from port 2 to port 1 after overcoming solenoid force. This model boasts several key features including a continuous-duty rated coil and a hardened seat which ensures longevity and maintains low leakage levels. It offers optional coil voltages and terminations, catering to diverse operational requirements. The efficient wet-armature construction enhances its performance while its cartridges are voltage interchangeable for versatility. The unitized, molded coil design along with manual override options add to its functionality and ease of use. Furthermore, optional waterproof E-Coils are available which are rated up to IP69K for enhanced protection against environmental elements. This valve also benefits from a cost-effective cavity design that simplifies installation and maintenance procedures.
