SV12-21P-0-N-230AG W/ 7004426 NUT

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

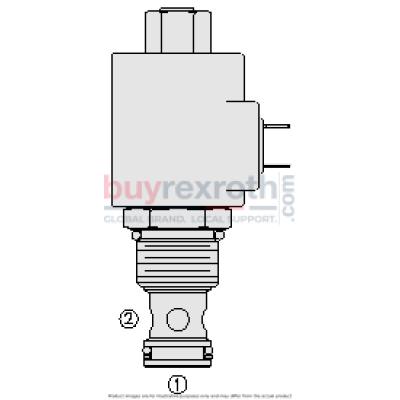

The Hydraforce 5049066 (5049066) is a solenoid-operated, 2-way, normally open, poppet-type, screw-in hydraulic cartridge valve. This valve is specifically designed to function as a load holding or blocking valve in systems where low internal leakage is critical. In its default state when de-energized, the SV model allows fluid flow from port 1 to port 2 while severely restricting flow from port 2 to port 1. Upon energization, the valve’s poppet closes against its seat, effectively blocking flow from port 1 to port 2 and acting as a check valve that permits flow from port 2 to port 1 once the solenoid force is overcome. This model boasts several key features enhancing its functionality and durability. It includes a continuous-duty rated coil and a hardened seat that ensures long life and minimal leakage. The efficient wet-armature construction contributes to the valve's reliable performance under various conditions. Additionally, the cartridges are voltage interchangeable which provides flexibility for system integration. The unitized, molded coil design enhances durability and reliability of operation. Further customization is available through optional coil voltages and terminations which can be tailored to meet specific application requirements. A manual override option offers added control flexibility, ensuring that operations can continue even in case of electronic control failure. For applications requiring enhanced protection against environmental elements, optional waterproof E-Coils are available, rated up to IP69K for high-degree ingress protection. Lastly, its cost-effective cavity design makes it an economical choice for various hydraulic applications requiring robust control with low leakage characteristics.
