SV12-21P-0-N-24EL/Z W/ 7004426 NUT

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

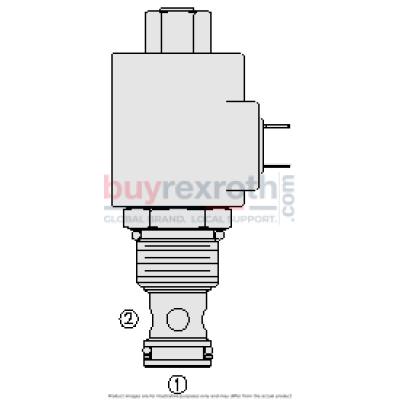

The Hydraforce 5049036 (5049036) is a solenoid-operated, 2-way, normally open, poppet-type, screw-in hydraulic cartridge valve. This device is specifically designed to function as a load holding or blocking valve in various applications, particularly where low internal leakage is crucial. The operation of the valve is straightforward: when de-energized, it allows fluid flow from port 1 to port 2 while severely restricting flow in the reverse direction. Upon energization, the valve's poppet closes against its seat, effectively blocking any flow from port 1 to port 2. This configuration enables the valve to act as a check valve, allowing flow from port 2 to port 1 once the solenoid force is overcome. Key features of the Hydraforce 5049036 include a continuous-duty rated coil and a hardened seat that ensures long life and minimal leakage. It offers flexibility with optional coil voltages and terminations and boasts an efficient wet-armature construction. The cartridges are voltage interchangeable which enhances versatility for different systems and applications. Its unitized, molded coil design aids in robust performance while an optional manual override provides additional operational control. Furthermore, for environments demanding higher durability standards, there are optional waterproof E-Coils available that are rated up to IP69K. This model also benefits from a cost-effective cavity design that simplifies installation and maintenance processes.
