SP12-20-16T-N-12ER SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

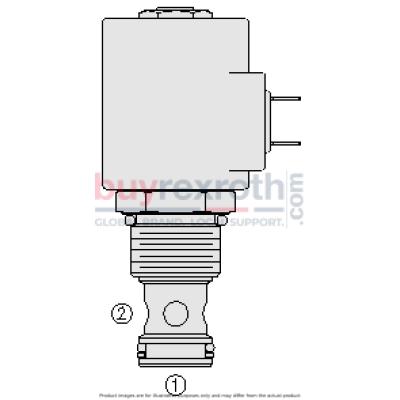

The Hydraforce 5044206 (5044206) is a solenoid-operated, 3-way, normally closed, poppet-type, proportional, screw-in hydraulic cartridge valve. This valve is specifically designed for low leakage blocking and load-holding applications across various hydraulic systems. When de-energized, the 5044206 acts as a check valve, facilitating flow from one port to another while effectively blocking the opposite flow direction. Upon energization, the poppet lifts to open up the flow path completely. Key features of this model include its continuous-duty rated coil and efficient wet-armature construction which enhance its reliability and performance under continuous operational conditions. Additionally, the valve is equipped with a manual override option that provides an alternative control method in situations where electronic control is not feasible. The optional waterproof E-Coils of the 5044206 are rated up to IP69K, offering enhanced protection against ingress of dust and high-temperature high-pressure water jets. Moreover, this model adheres to industry common cavity specifications which simplifies installation and maintenance processes by allowing compatibility with standard cavities used in similar applications. The metering option available with this model further enhances its application by allowing precise control over fluid flow, making it suitable for a variety of complex hydraulic tasks requiring careful handling of pressure and flow rates.
