SV12-34-10T-N-12ERZ SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

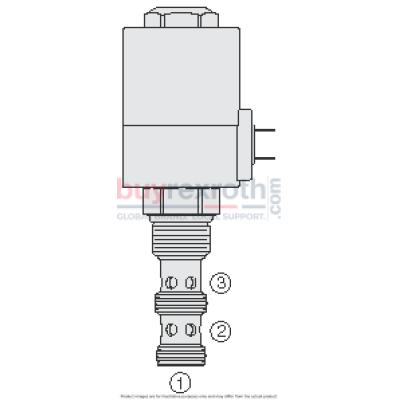

The Hydraforce 5042491 (5042491) is a solenoid operated, two-position, three-way, direct acting spool valve designed for robust performance in various hydraulic systems. This valve features a manual override option and a continuous-duty rated coil that enhances its operational reliability. The precision-engineered spool and cage are hardened to ensure longevity and consistent performance even under rigorous conditions. When the 5042491 is de-energized, it allows fluid flow from one specified port to another while blocking a third port, effectively controlling the direction and movement of hydraulic fluids within a system. Upon energization, the valve's spool shifts to alter the flow path, opening between another set of ports and simultaneously blocking another. This functionality makes it adaptable for different hydraulic circuit applications. All ports on the 5042491 can withstand full pressurization, providing flexibility in how the valve can be integrated into hydraulic systems without concern for inlet or outlet limitations. Additionally, it includes heavy-duty waterproof E-Coils rated up to IP69K, ensuring protection against dust ingress and high-pressure water jets, suitable for environments requiring stringent cleanliness and moisture resistance. The optional coil voltages and terminations offer further customization to meet specific system requirements, enhancing this model's utility across various applications requiring precise control of hydraulic flow in challenging environments.
