SV12-34P-12T-N-12EG SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

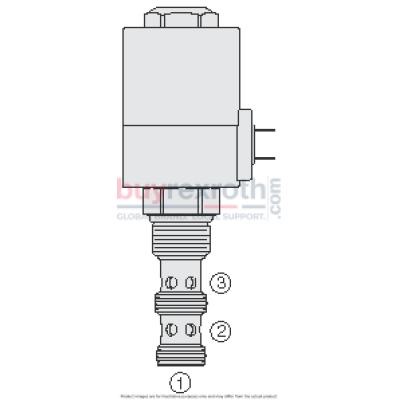

The Hydraforce 5042411 (5042411) is a solenoid operated, two-position, three-way, direct acting spool valve designed for robust hydraulic control. This precision-engineered valve features a hardened precision spool and cage that ensure long life and reliable performance under various operating conditions. It operates by allowing flow from one port to another while blocking a third when deenergized, and shifts to open flow between a different set of ports while blocking another when energized. Notably, all ports on the SVX model can be fully pressurized, although one port is not intended for use as an inlet. The 5042411 includes several standout features such as manual override options which provide additional control flexibility in system operation and maintenance. It is equipped with continuous-duty rated coils that are suitable for sustained operational periods without degradation of performance. The heavy-duty waterproof E-Coils incorporated into the design are rated up to IP69K, offering exceptional protection against ingress of dust and high-pressure water jets, making it suitable for harsh environmental conditions. Furthermore, the valve offers optional coil voltages and terminations to accommodate varying electrical requirements, enhancing its adaptability across different systems and applications. This combination of durability, flexibility, and high-performance specifications makes the Hydraforce 5042411 an excellent choice for demanding hydraulic applications requiring precise flow control and reliability.
