SV12-21-12T-N-24DL SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

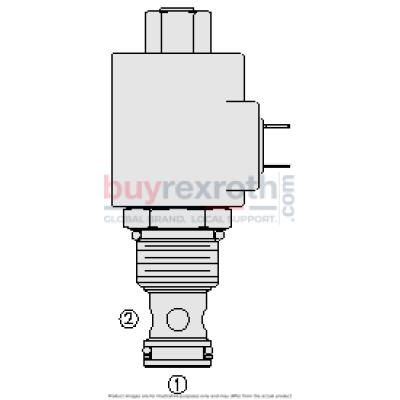

The Hydraforce 5041868 (5041868) is a solenoid-operated, 3-way, normally open, poppet-type, screw-in hydraulic cartridge valve. This valve is primarily designed to function as a load holding or blocking valve in systems that require low internal leakage. Operationally, when the SV 5041868 is de-energized, it allows flow from port 1 to port 2 while severely restricting flow from port 2 to port 1. Upon energization, the valve's poppet closes against its seat effectively blocking flow from port 1 to port 2 and acting as a check valve that permits flow from port 2 to port 1 after overcoming the solenoid force. This model boasts several notable features including a continuous-duty rated coil and a hardened seat that ensures long life and minimal leakage. It also offers optional coil voltages and terminations to accommodate various system requirements. The efficient wet-armature construction enhances its performance while the cartridges are designed to be voltage interchangeable. The unitized, molded coil design contributes to its robustness and reliability in demanding applications. Additionally, manual override options are available for increased operational flexibility. For environments requiring enhanced protection against moisture and dust, optional waterproof E-Coils rated up to IP69K are available. This valve also uses a cost-effective cavity design which simplifies installation and maintenance processes.
