SV12-22-0-N-24ER/Z SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

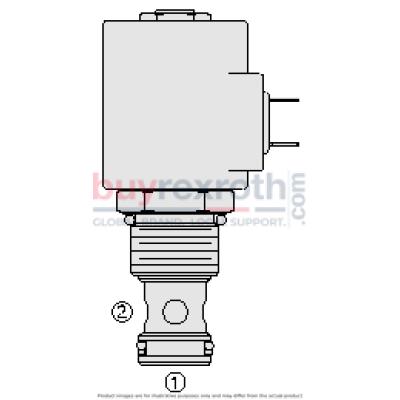

The Hydraforce 5041099 (5041099) is a solenoid-operated, 3-way, normally closed, poppet-type, screw-in hydraulic cartridge valve. This valve is specifically designed to function as a load holding or blocking valve in systems requiring minimal internal leakage. The operational mechanism of the 5041099 allows it to act as a check valve when de-energized, permitting flow from port 1 to port 2 while preventing reverse flow. Upon energization, the poppet lifts to facilitate an open pathway from port 1 to port 2, concurrently allowing flow from port 2 to port 3. Key features of this model include a continuous-duty rated coil and a hardened seat that ensures longevity and maintains low leakage levels. It boasts efficient wet-armature construction and offers optional coil voltages and terminations for versatility in application. The cartridges are interchangeable across different voltages which enhances adaptability. Additionally, the unitized, molded coil design enhances durability and reliability of the valve. Further enhancing its utility are options such as manual override and waterproof E-Coils that are rated up to IP69K, making it suitable for environments where moisture or dust ingress is a concern. Its cost-effective cavity design makes it an economical choice for various hydraulic applications. This model promises robust performance and reliability for specialized hydraulic needs.
