SV12-22-0-N-12DS W/ 7004406 NUT

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

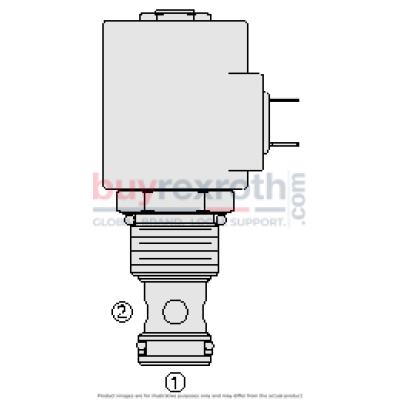

The Hydraforce 5041016 (5041016) is a solenoid-operated, 3-way, normally closed, poppet-type hydraulic cartridge valve. It is specifically designed to serve as a load holding or blocking valve in various applications that demand low internal leakage. The construction of the valve ensures high durability and performance with features like a hardened seat that prolongs life and minimizes leakage. Its efficient wet-armature construction enhances its reliability under different operating conditions. When the valve is de-energized, it functions as a check valve by allowing flow from port 1 to port 2 while blocking the flow in the reverse direction. Upon energization, the poppet lifts to open up the flow path from port 1 to port 2, also permitting flow from port 2 to port 1. This dual functionality makes it versatile for different hydraulic circuits. Moreover, the Hydraforce 5041016 offers continuous-duty rated coils and includes options for different coil voltages and terminations to accommodate varying electrical requirements. The unitized, molded coil design supports easier maintenance and consistent performance. An optional manual override feature adds flexibility in operation during emergency or maintenance scenarios. Additionally, for applications requiring enhanced environmental protection, there are optional waterproof E-Coils available that are rated up to IP69K, ensuring performance in harsh conditions. The standardized cavity design of this model also contributes to cost-effectiveness by simplifying installation processes and reducing overall system complexity. This makes the Hydraforce 5041016 an efficient and reliable choice for integrating into hydraulic systems requiring precise control with minimal leakage.
