SV12-20-16T-V-115AP SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

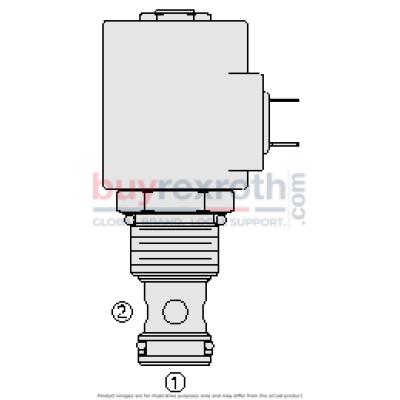

The Hydraforce 5040976V (5040976V) is a solenoid-operated, 2-way, normally closed, poppet-type, screw-in hydraulic cartridge valve. It is specifically designed to function as a load holding or blocking valve in various applications where low internal leakage is crucial. The operation of the 5040976V allows it to act as a check valve when de-energized, permitting flow from port 1 to port 2 while blocking the flow in the reverse direction. Upon energization, the poppet lifts, altering the flow path from port 1 to port 2 and significantly restricting flow from port 2 to port 1. This model is highlighted by its continuous-duty rated coil and hardened seat which ensure longevity and minimal leakage. The valve features efficient wet-armature construction and interchangeable voltage cartridges that enhance its versatility and performance. Additionally, it includes a unitized, molded coil design with a manual override option and offers optional waterproof E-Coils rated up to IP69K for enhanced durability against environmental elements. This makes the Hydraforce 5040976V an efficient solution for hydraulic systems requiring reliable load holding capabilities with minimal maintenance needs.
