SV12-22M-12T-N-24DG SOLENOID VLV

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

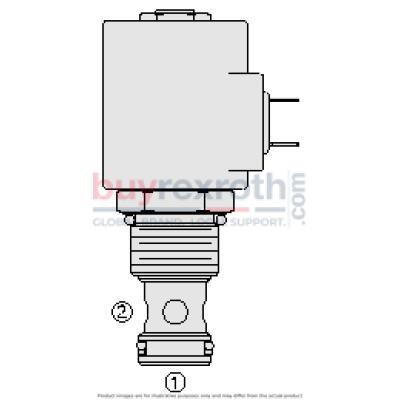

The Hydraforce 5040910 (5040910) is a solenoid-operated, 3-way, normally closed, poppet-type, screw-in hydraulic cartridge valve. This valve is specially designed to function as a load-holding or blocking valve in systems that require minimal internal leakage. In its default state when de-energized, the 5040910 acts as a check valve, permitting fluid flow from port 1 to port 2 while preventing reverse flow. Upon activation, the poppet lifts to enable flow from port 1 to port 2 and vice versa, thus facilitating dual-directional control of hydraulic fluids. This model is distinguished by its continuous-duty rated coil and hardened seat which ensure long life and maintain low leakage rates. It incorporates efficient wet-armature construction and features unitized, molded coil design that enhances durability and performance reliability. The cartridges of the 5040910 are voltage interchangeable which provides flexibility for various system requirements. Further enhancing its adaptability are optional coil voltages and terminations that can be tailored to specific application needs. For environments demanding robust performance, there is an option for waterproof E-Coils rated up to IP69K. Additionally, it offers a manual override option which can be crucial in situations requiring manual intervention. Designed with a cost-effective cavity, the Hydraforce 5040910 offers an economical solution without compromising on quality or performance, making it suitable for a wide range of hydraulic applications where precision and reliability are paramount.
