SV12-P20AM-0-N-24EG-M3 SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

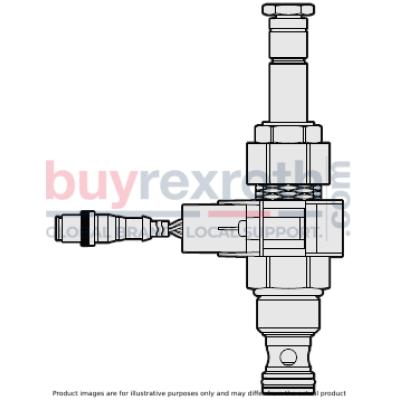

The Hydraforce 5040158 (5040158) is a solenoid-operated, 2-port, normally closed, poppet-type, screw-in hydraulic cartridge valve. This valve is specifically designed to function as a load holding or blocking valve in applications where low internal leakage is crucial. In its default state when de-energized, the 5040158 acts as a check valve allowing hydraulic fluid to flow from port 1 to port 2 while preventing flow in the reverse direction. Upon energization, the poppet lifts to open the flow path from port 1 to port 2 but restricts flow in the reverse direction significantly. The model features an integral position sensor that indicates when the valve has shifted positions, enhancing operational accuracy and safety. It also boasts a continuous-duty rated coil and a hardened seat which ensures long life and maintains low leakage levels under various conditions. The efficient wet-armature construction of the cartridge contributes to its robust performance. Additional noteworthy characteristics include optional coil voltages and terminations which provide flexibility for different system requirements. The cartridges are voltage interchangeable which facilitates easy maintenance and replacement. For durability and reliability in harsh environments, the waterproof E-Coils are rated up to IP69K and its unitized, molded coil design enhances its environmental resilience. Moreover, it offers excellent corrosion resistance with solenoid tubes and coils that are rated for 500-hour salt spray endurance. This makes the Hydraforce 5040158 an ideal choice for demanding hydraulic applications requiring precise control with minimal leakage.
