SV12-20-0-N-24DS W/ 7004406 NUT

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

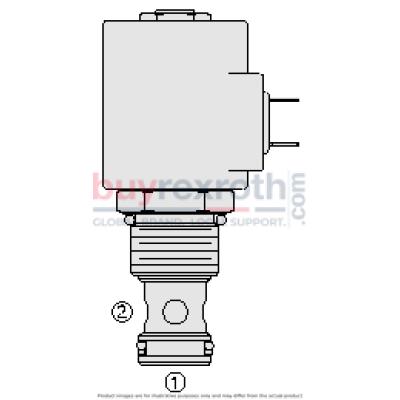

The Hydraforce 5040086 (5040086) is a solenoid-operated, 2-way, normally closed, poppet-type, screw-in hydraulic cartridge valve. It is specifically designed to function as a load holding or blocking valve in systems that require minimal internal leakage. The operation of this valve is straightforward: when de-energized, the SVX model acts as a check valve allowing hydraulic fluid to flow from port 1 to port 2 while preventing reverse flow. Upon energization, the poppet lifts, altering the flow path from port 1 to port 2 and restricting flow from port 2 to port 1. This model boasts several notable features including a continuous-duty rated coil and a hardened seat which ensure long life and low leakage. It offers optional coil voltages and terminations, catering to diverse operational requirements. The efficient wet-armature construction enhances its performance while its cartridges are voltage interchangeable for flexibility in use. The unitized, molded coil design contributes to its robustness and reliability in various hydraulic applications. Additional options include manual override capabilities and waterproof E-Coils that are rated up to IP69K for enhanced protection against dust and water ingress, making it suitable for harsh environments. Its cost-effective cavity design further makes it an economical choice for integrating into hydraulic systems without compromising on functionality or efficiency.
