SV10-34M-6T-N-12DL/W SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

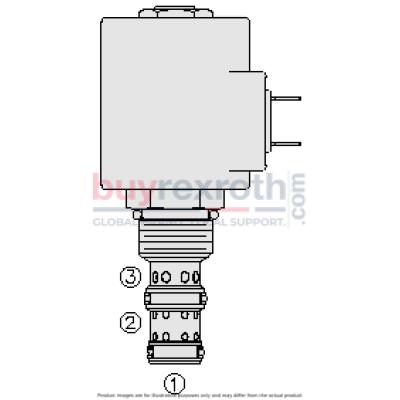

The Hydraforce 5036445 (5036445) is a high-performance solenoid-operated, 3-way, direct-acting, spool-type, screw-in hydraulic cartridge valve designed for efficient control in hydraulic systems. The operation of this valve is straightforward: when de-energized, it allows fluid flow from port 1 to port 2 while blocking flow at port 3. Upon energization, the valve’s spool shifts to open flow from port 1 to port 3 and simultaneously blocks flow at port 2. This precise control mechanism is facilitated by a hardened precision spool and cage which ensure longevity and reliability under continuous use. The Hydraforce 5036445 features a continuous-duty rated coil that sustains performance even under demanding conditions. Its efficient wet-armature construction enhances its operational efficiency. The unitized, molded coil design contributes to its robustness and durability in various environments. Furthermore, this model offers flexibility in terms of customization with optional coil voltages and terminations available to suit different operational requirements. For enhanced versatility, all ports on the Hydraforce 5036445 can be fully pressurized making it suitable for a variety of hydraulic applications. It also includes a manual override option which adds an extra layer of operational security allowing manual control when needed. Additionally, optional waterproof E-Coils are available which are rated up to IP69K for high-level protection against ingress of dust and high temperature/high-pressure water jets. This valve also fits industry common cavity specifications which simplifies installation processes and ensures compatibility with existing systems. The combination of these features makes the Hydraforce 5036445 an ideal choice for those seeking a reliable and adaptable hydraulic valve solution.
