SV10-34-3B-N-24DL SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

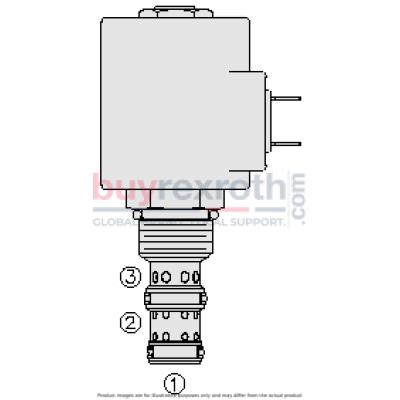

The Hydraforce 5036376 (5036376) is a solenoid-operated, 3-way, direct-acting, spool-type, screw-in hydraulic cartridge valve designed for efficient control in hydraulic systems. This valve operates by allowing flow from port 1 to port 2 while blocking flow at port 3 when de-energized. When energized, the valve’s spool shifts to open flow from port 1 to port 2, simultaneously blocking port 3. This functionality makes it suitable for applications requiring precise control over fluid direction and flow. The model features a continuous-duty rated coil and a hardened precision spool and cage that enhance its durability and lifespan even under rigorous conditions. Its efficient wet-armature construction ensures reliable performance and responsiveness. The valve's cartridges are voltage interchangeable which provides flexibility in terms of electrical input specifications. All ports of the valve can withstand being fully pressurized, adding to its robustness and versatility in various hydraulic setups. Additional enhancements include optional coil voltages and terminations which allow customization according to specific requirements. The unitized, molded coil design contributes to the overall resilience and reliability of the assembly. For environments requiring stringent protection against moisture, there are optional waterproof E-Coils available that are rated up to IP69K. Furthermore, it includes an industry common cavity which facilitates easy installation and compatibility with existing systems without the need for extensive modifications. A manual override option is also available providing auxiliary control when needed. This combination of features ensures that the Hydraforce 5036376 is capable of meeting diverse application needs while maintaining high performance and reliability.
