SV10-34M-0-N-10ER/Z SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

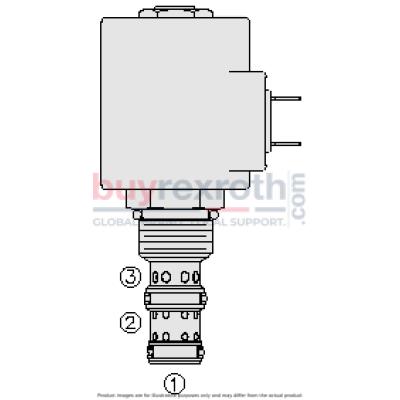

The Hydraforce 5036121 (5036121) is a solenoid-operated, 3-way, direct-acting, spool-type, screw-in hydraulic cartridge valve designed for robust performance in various hydraulic systems. This valve operates by allowing flow from port 1 to port 2 while blocking flow at port 3 when de-energized. Upon energization, the valve’s spool shifts to open flow from port 2 to port 3, simultaneously blocking port 1. It features a continuous-duty rated coil and a hardened precision spool and cage that enhance its longevity and reliability in demanding applications. The Hydraforce 5036121 is built with efficient wet-armature construction and its cartridges are voltage interchangeable which provides flexibility for different electrical requirements. All ports of the valve can be fully pressurized, making it versatile for various hydraulic routing configurations. The unitized, molded coil design ensures durability and consistent performance. Additionally, this model offers optional coil voltages and terminations to accommodate diverse operational needs and environments. For enhanced usability in challenging conditions, it includes an optional waterproof E-Coils rated up to IP69K. A manual override option is also available for situations where manual control is necessary. With an industry common cavity design, the Hydraforce 5036121 ensures easy installation and compatibility with standard cavities in hydraulic systems.
