SV10-34M-0-N-230AG SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

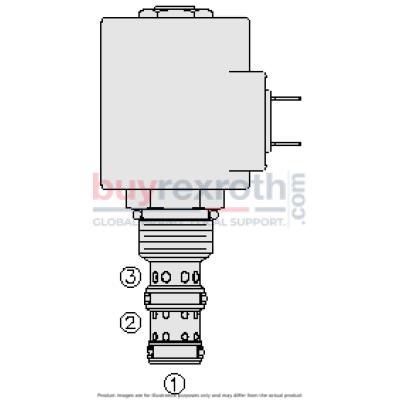

The Hydraforce 5036069 (5036069) is a solenoid-operated, 3-way, direct-acting, spool-type, screw-in hydraulic cartridge valve designed for robust performance in hydraulic systems. This valve facilitates precise control of fluid flow between its ports, enhancing operational efficiency and reliability. In its default state when de-energized, the SV model allows flow from port 1 to port 2 while blocking flow at port 3. Upon energization, the valve's spool shifts to open flow from port 1 to port 3 and simultaneously blocks port 2. Key features of the Hydraforce 5036069 include a continuous-duty rated coil and a hardened precision spool and cage that ensure prolonged operational life even under demanding conditions. The valve is engineered with efficient wet-armature construction and offers optional coil voltages and terminations to accommodate diverse system requirements. Its cartridges are voltage interchangeable which adds to its versatility in application. Moreover, all ports on the Hydraforce 5036069 can be fully pressurized, maximizing functionality in various hydraulic setups. The unitized, molded coil design contributes to its durability and reliability. For enhanced usability, this model comes with a manual override option and can be fitted with optional waterproof E-Coils rated up to IP69K for high-resistance against water ingress. It also conforms to an industry-common cavity design which makes it compatible with standard cavities in hydraulic systems, simplifying installation and maintenance processes.
