SV10-34-0-N-115AP SOLENOID COIL

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

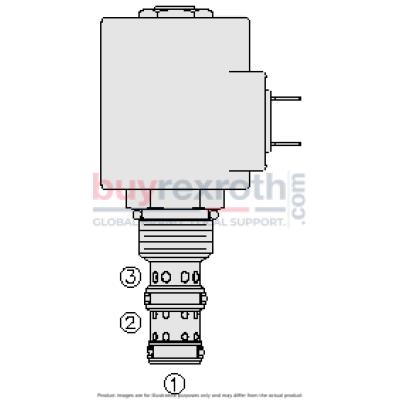

The Hydraforce SV10-34-0-N-115AP (5036067) is a solenoid-operated, 3-way, direct-acting, spool-type, screw-in hydraulic cartridge valve designed for robust performance in various hydraulic systems. This valve functions by allowing flow from port 1 to port 2 while blocking flow at port 3 when de-energized. Upon energization, the spool shifts to open the flow from port 2 to port 1 while continuing to block at port 3. It features a continuous-duty rated coil and a hardened precision spool and cage that enhance its lifespan and reliability. The SV10-34-0-N-115AP is engineered with efficient wet-armature construction and offers optional coil voltages and terminations to accommodate diverse system requirements. The cartridges are interchangeable across different voltages, ensuring flexibility in usage. All ports on this valve can be fully pressurized, adding to its versatility in application. The unitized, molded coil design contributes to its durability and consistent performance. For environments requiring enhanced protection against moisture, there are optional waterproof E-Coils available that are rated up to IP69K. Additionally, a manual override option provides added operational control. This valve is designed for use in industry-standard cavities (VC size-way cavities), making it compatible with a wide range of existing systems without the need for extensive modifications. The Hydraforce SV10-34-0-N-115AP operates efficiently within a fluid temperature range of -40°C to +100°C with Buna N seals and has adaptable seal options for varying temperature conditions. Its robust design specifications include pressure ratings up to 350 bar (5075 psi), burst pressures significantly higher ensuring safety and reliability under extreme conditions, and flow ratings that can handle up to 37.9 lpm (10 gpm). This makes it an ideal choice for applications requiring precise control of hydraulic flow with dependable performance.
