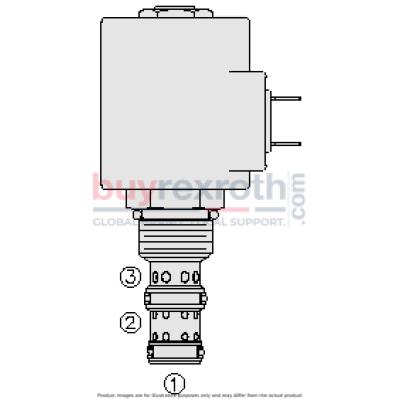

The Hydraforce SV10-34M-0-N-0 (5036002) is a solenoid-operated, 3-way, direct-acting, spool-type, screw-in hydraulic cartridge valve designed for efficient control in hydraulic systems. This valve operates by allowing flow from port 1 to port 2 while blocking flow at port 3 when de-energized. Upon energization, the spool shifts to open flow from port 2 to port 1 while still blocking port 3. It features a continuous-duty rated coil and a hardened precision spool and cage that ensure durability and longevity even under challenging conditions. The SV10-34M-0-N-0 is equipped with efficient wet-armature construction and its cartridges are voltage interchangeable, which adds to its versatility in system integration. The unitized, molded coil design enhances the robustness of the assembly. For environments requiring additional protection against moisture, optional waterproof E-Coils rated up to IP69K are available. This model is designed to handle maximum input flows up to specified limits (please consult factory specifications for performance limits under certain conditions). It supports various seal materials compatible with different operating temperatures ranging from -40°C to +120°C depending on the seal type chosen (Buna N, fluorocarbon, polyurethane, or urethane). The valve's design allows all ports to be fully pressurized. For installation flexibility, it fits an industry common cavity (VC10-3) and has no orientation restrictions during installation. Additionally, manual override options are available for scenarios where manual operation is necessary. This makes the SV10-34M-0-N-0 a versatile choice for various hydraulic applications requiring reliable directional control of fluid flow within a compact cartridge design.
