SV10-22M-0-N-12DL W/ 7004596 NUT

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

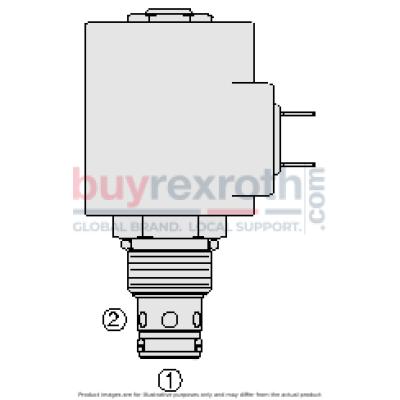

The Hydraforce 5030034 (5030034) is a solenoid-operated, 3-way, normally closed, poppet-type, screw-in hydraulic cartridge valve that offers robust performance in low leakage blocking and load holding applications. Specifically designed to function efficiently in hydraulic systems, this model stands out with its hardened seat that ensures long life and minimal leakage. The operation of the valve is straightforward: when de-energized, the SVX configuration allows it to act as a check valve, permitting fluid flow from port 1 to port 2 while blocking the reverse flow. Upon energization, the poppet lifts to facilitate an open flow path from port 2 to port 1 and also enables flow from port 2 to port 1. This dual-functionality makes it versatile for various hydraulic circuits. Further enhancing its utility are features like a continuous-duty rated coil and efficient wet-armature construction which contribute to its reliability and performance under continuous operational conditions. The unitized, molded coil design not only simplifies maintenance but also boosts durability. For customization based on specific requirements, it offers optional coil voltages and terminations along with a manual override option. Additionally equipped with optional waterproof E-Coils rated up to IP69K, the Hydraforce 5030034 ensures reliable operation even in environments where moisture or dust ingress is a concern. Its industry common cavity design facilitates easy installation and compatibility with existing systems without the need for extensive modifications or custom parts. This combination of features makes it an excellent choice for professionals seeking a dependable solution in hydraulic system applications.
